Plot an mrf3_fit object

Source: R/plot_mrf3_fit.R
plot.mrf3_fit.Rd

Unified plotting entry point for fitted multiRF pipelines. The method extracts the components each display needs from the fit (the learned sample similarity, cluster labels via get_clusters(), IMD weights via get_weights(), pairwise feature adjacency via pairwise_imd()) and forwards them, together with ..., to the corresponding exported plot function, so every option of the underlying function stays reachable.

Usage

# S3 method for class 'mrf3_fit'
plot(
  x,
  type = c("tsne", "umap", "embed", "network", "circos", "composition", "km", "weights"),
  ...,
  annotation = NULL,
  time_var = NULL,
  event_var = NULL,
  pheno_mat = NULL
)

Arguments

x

An mrf3_fit object returned by mrf3_fit() (or mrf3()).

type

Plot type; one of "tsne", "umap", "embed", "network", "circos", "composition", "km", "weights". Defaults to "tsne".

...

Additional arguments forwarded to the target plot function (e.g. seed, perplexity, cutoff, top, source, omics, group, cut.off, risk.table). For type = "circos", feature_source and normalized are forwarded to pairwise_imd(). For type = "embed", embed_dims sets the number of principal components displayed.

annotation

Required for type = "composition": a vector or factor of external sample annotations (e.g. tumour subtypes), one value per sample and in the same sample order as the fitted data. The fit itself stores no annotations.

time_var

Required for type = "km": name of the survival/follow-up time column in pheno_mat.

event_var

Required for type = "km": name of the binary 0/1 event column in pheno_mat.

pheno_mat

Required for type = "km": data frame of sample-level phenotype data containing time_var and event_var, with one row per sample in the same sample order as the fitted data.

Value

Whatever the target plot function returns: a ggplot object for "tsne", "umap", "composition", and "weights"; a ggsurvplot object for "km"; invisibly, an igraph object for "network", the chord-diagram data for "circos", and NULL for "embed".

Details

Supported type values and their targets:

  • "tsne" (default): plot_tsne() on the fitted similarity matrix (t-SNE), coloured by shared cluster.

  • "umap": plot_umap() on the fitted similarity matrix.

  • "embed": deprecated pairs display via plot_embed(), drawn on the top principal components of the fitted similarity matrix (control the number of components with embed_dims, default 3).

  • "network": plot_network() sample network from the fitted similarity matrix, vertices coloured by shared cluster.

  • "circos": pairwise_imd() on the fit, then plot_circos() of the feature-level adjacency (source = "adj_var" by default). Requires IMD (run_imd = TRUE) and retained models (compact_output = FALSE).

  • "composition": plot_cluster_composition() of shared clusters against a user-supplied annotation vector.

  • "km": plot_km() Kaplan–Meier curves of the shared clusters; the fit holds no survival data, so time_var, event_var, and pheno_mat must be supplied.

  • "weights": plot_weights() of the per-block IMD weights. Requires run_imd = TRUE (or cluster-level IMD via run_cluster_imd = TRUE).

For every type the default sample grouping is get_clusters(x); pass group through ... to override it (for "tsne", "umap", "embed", "network", "composition", and "km"). When source = "robust_clustering" is passed through ..., robust cluster labels are used instead, and source = "specific_specific" with omics uses that block's specific cluster labels.

Cluster colours are consistent across all types: cluster ids are mapped in sorted order onto a fixed colour-blind-safe palette (the same palette the individual plot functions use), so cluster 2 has the same colour in the t-SNE, network, and Kaplan–Meier displays. A user-supplied colour setting passed through ... (for example palette for "km" or colours for "composition") always wins over this default, and the returned ggplot objects accept a replacement scale_fill_manual() / scale_colour_manual().

See also

plot_tsne(), plot_umap(), plot_network(), plot_circos(), plot_cluster_composition(), plot_km(), plot_weights(), get_clusters(), pairwise_imd()

Examples

# \donttest{
data("tcga_brca_data", package = "multiRF")
ids <- rownames(tcga_brca[[1]])[seq_len(80)]
dat <- lapply(tcga_brca, function(x) {
  x[ids, seq_len(min(30L, ncol(x))), drop = FALSE]
})

fit <- mrf3_fit(
  dat,
  ntree = 30,
  filter_mode = "none",
  clustering_args = list(shared_k = 3),
  run_imd = TRUE,
  return_data = TRUE,
  filter_verbose = FALSE,
  verbose = FALSE,
  seed = 529
)
#> Auto model_top_v `tmax` = 80 (n = 80).
#> Auto fused_top_v `vmax` = 80 (n = 80).
#>   Using IMD weights stored during fitting.

## Embeddings and networks of the learned similarity

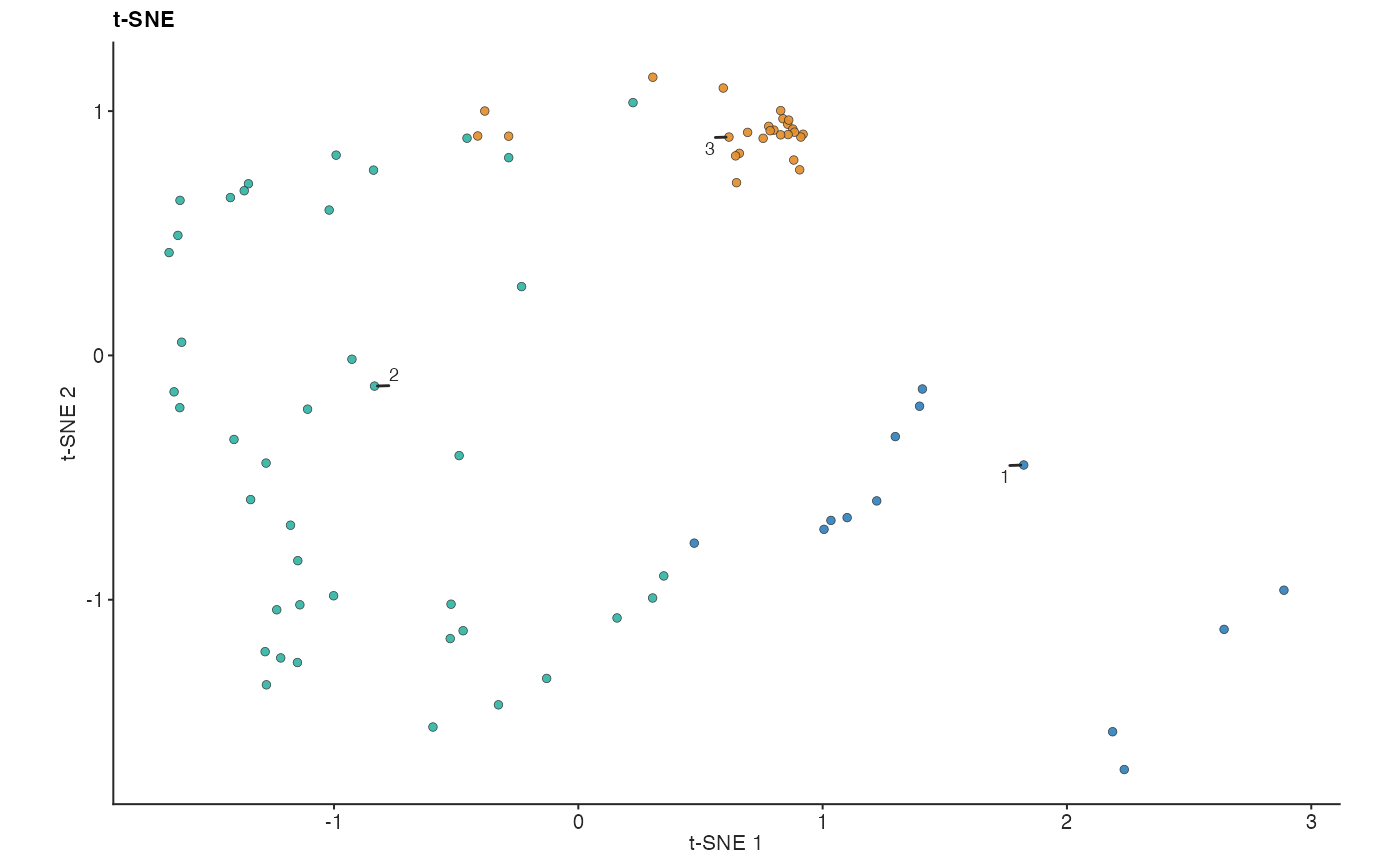

plot(fit, type = "tsne", seed = 529)

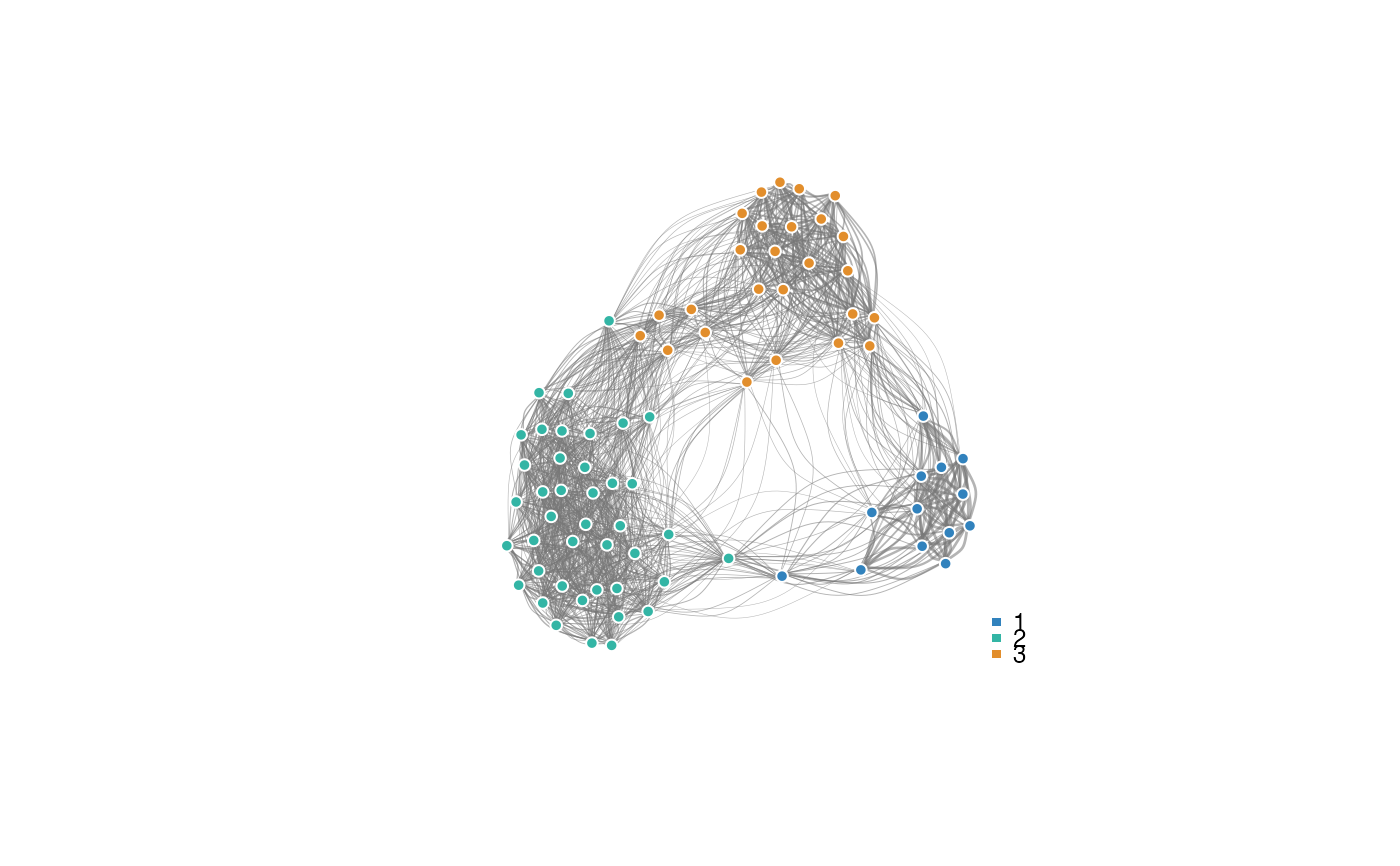

plot(fit, type = "network", seed = 529)


## IMD feature weights

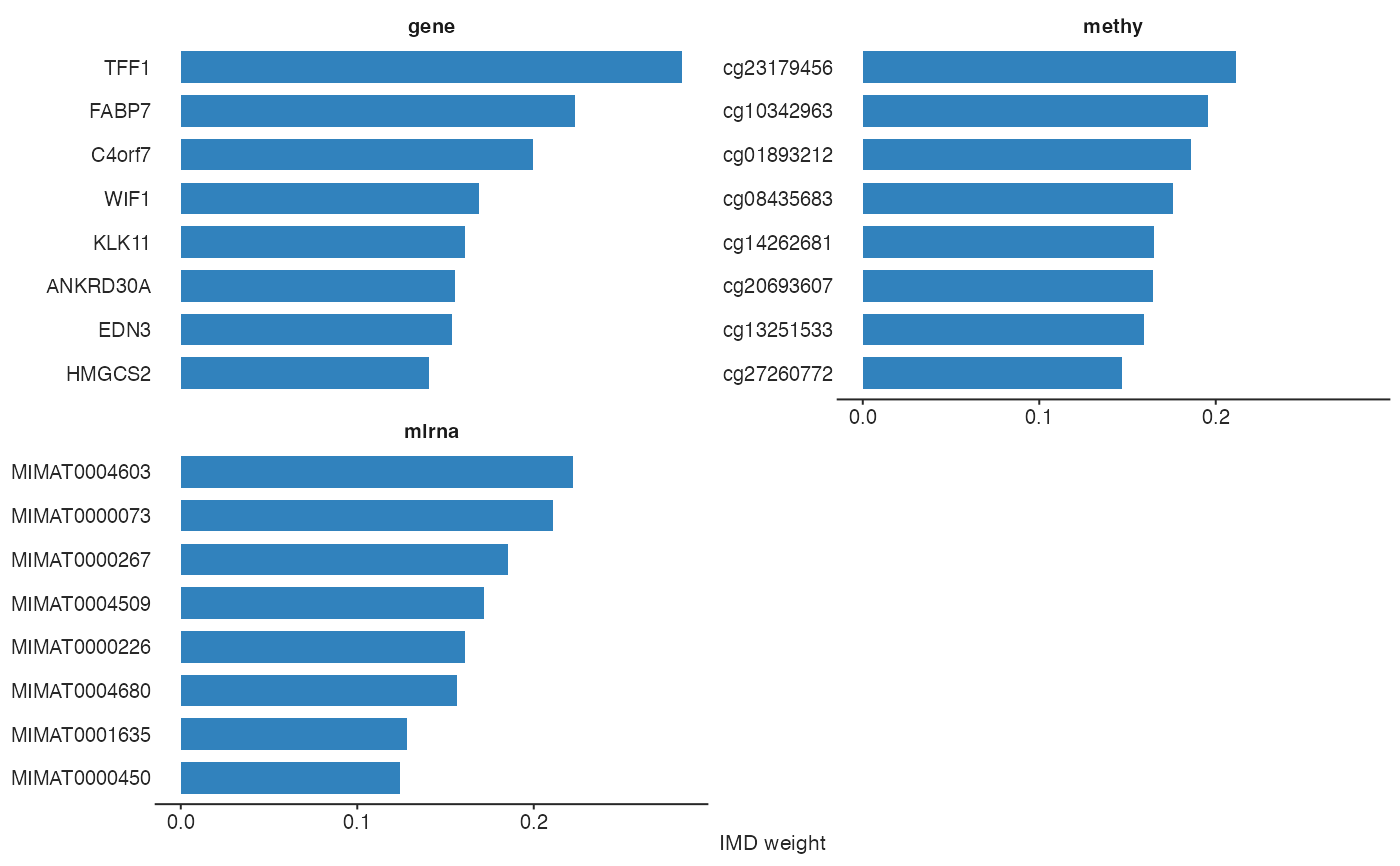

plot(fit, type = "weights", top = 8)


## Cluster composition against an external annotation
annotation <- factor(rep(c("Subtype A", "Subtype B"), length.out = 80))

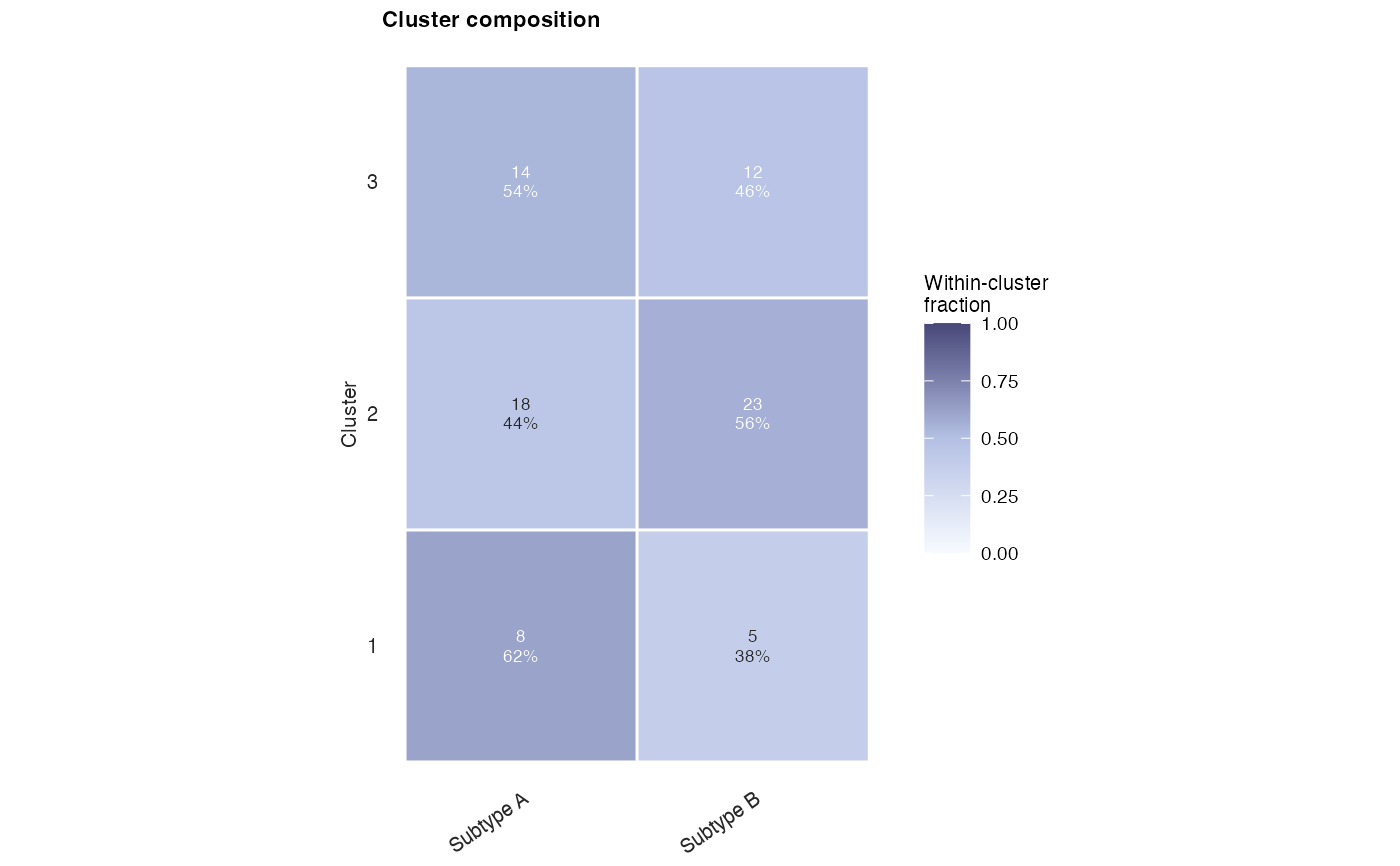

plot(fit, type = "composition", annotation = annotation)


## Kaplan-Meier curves need user-supplied survival data
if (requireNamespace("survival", quietly = TRUE) &&
    requireNamespace("survminer", quietly = TRUE)) {
  pheno <- data.frame(
    os_time = stats::rexp(80, rate = 1 / 50),
    os_event = stats::rbinom(80, 1, 0.6)
  )

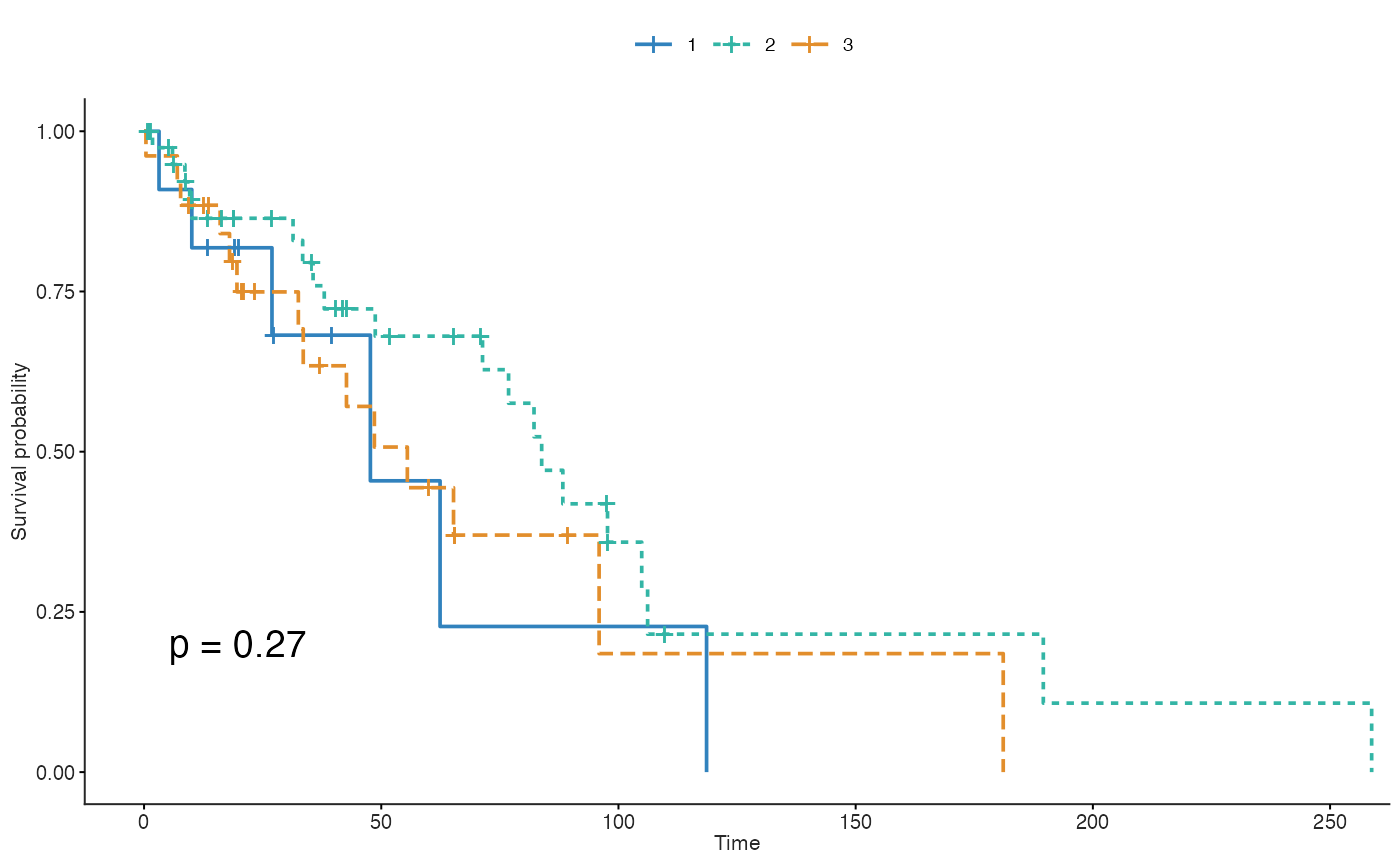

  plot(fit, type = "km", time_var = "os_time", event_var = "os_event",
       pheno_mat = pheno, risk.table = FALSE)
}
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> ℹ The deprecated feature was likely used in the ggpubr package.
#>   Please report the issue at <https://github.com/kassambara/ggpubr/issues>.

# }
